Page ref: 85

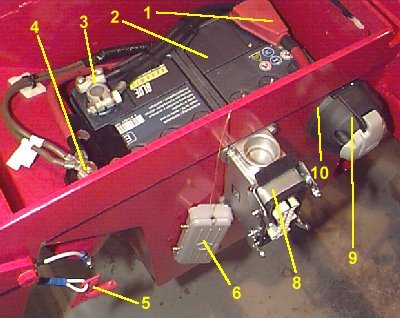

Battery box

1

Battery lead +ve

a) TDI
b) Phantom/Stealth TCI
c) 4D,475,5D
d) 3D
Also Specify overall length

2

Battery

a) 70 ah - all models 1998>
b) 65ah - obs

3

Earth lead -ve

a) TDI
b) Phantom/Stealth TCI
c) 4D,475,5D
d) 3D
Also Specify overall length

4

Battery isolator switch



5

Key - isolator switch



6

Cover - multipin socket

a) 16 pin
b) 24 pin

7

Plug - multipin

a) 16 pin
b) 24 pin

8

Socket - multipin

a) 16 pin
b) 24 pin

9

Socket - 7 pin

a) Black
b) Black/white

9a

Plug - 7 pin



10

Rubber gasket - 7 pin socket
