Page ref: 91

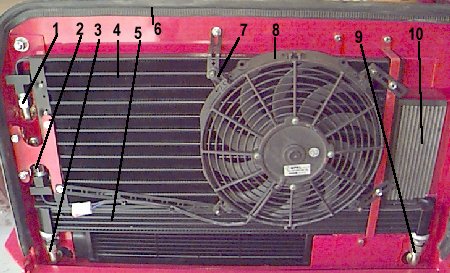

TDI auto - oil coolers, a/c condenser
|
1 |
Hose assy |
Condenser/compressor |
|
2 |
Hose assy |
a) Condenser /
receiver drier - Ph |
|
3 |
Hose assy - transmission oil |
Cooler/transmission |
|
4 |
A/C condenser |
|
|
5 |
Transmission oil cooler |
|
|
6 |
Rubber seal |
|
|
7 |
Fan mounting bracket |
|
|
8 |
Condenser fan |
|
|
9 |
Hose assy - trans oil |
Cooler/tee |
|
10 |
Hydraulic oil cooler |
25 row |
