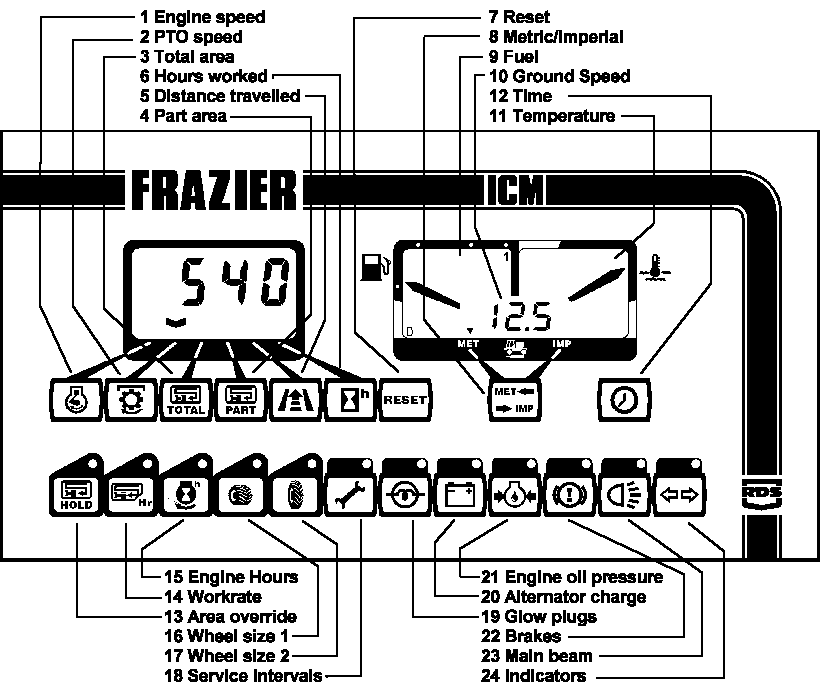

14 Workrate
15 Engine hours
16 Wheel
calibration 1
17 Wheel
calibration 2
18 Service intervals
Service reminder
19 Glow plugs
20 Alternator
21 Engine oil pressure
Oil
pressure alarm
22 Handbrake
Brake fluid
23 Main beam
24 Indicators |
Press to display
spot rate of work in LH window
Press to display
total engine running hours in LH window
Press to select
preprogrammed calibration for wheel size 1
Press to select
preprogrammed calibration for wheel size 2
Press to display
hours to and type of next service
Audible &
visual warning to remind when service is due
Glow plug warning
light for engine starting
Alternator charge
warning light
Engine oil
pressure warning light
Visual and audible
alarm if pressure low for 10secs with engine running
Visual warning
light, audible alarm only when moving
Warning light for
low level, audible alarm if moving
Warning light
Warning light and
audible beep with each flash |
