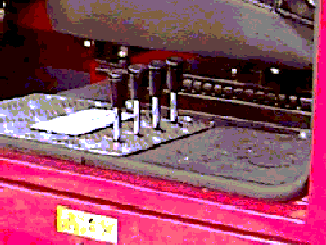

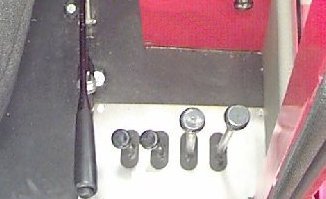

Operating - Opening/closing booms Folding/unfolding booms The machine must be stationary when folding and unfolding booms and should be parked on as level ground as possible. Ensure you are well clear of any obstacles especially overhead power cables.   Spool controls Agribuggy /Phantom The manual hydraulic spool valve controls on the Agribuggy and Phantom are positioned at the left hand side of the drivers seat It should only be normally necessary to run the engine at tick-over to open and close the booms. The decal to show the operation of the boom controls is positioned in front of the levers. Stealth The electro-hydraulic spool valve controls on the Stealth are on the main control pod. It will be necessary to run the engine at approximately 1500 rpm to activate the electro-spools, and up to 3000 rpm in some instances, e.g. cold weather. The decal to show the operation of the boom is on the same control panel.   Manual Spool controls - Agribuggy Manual Spool controls - Phantom Decal - manual spools Electro spool controls - Stealth Decal - electro spools < 24 >
