Operation - Driving controls
Running in
There are no
strict running in rules for the LandRover TDI diesel engine. However,
do not treat it harshly during the first fifty hours running. Avoid
consistently high speeds above 3000 rpm but do not let the engine
labour. There should always be a positive response from the throttle.
Select the right gear for the job. Be prepared to reduce your working
speed if necessary. Check the instruments frequently and keep the
coolant and oil filled to their recommended levels on a daily basis.
After the running
in period speeds should be progressively increased up to maximum
performance. The engine should not be run continually above 3500 rpm
and should never exceed 4000 rpm (3500 rpm if fitted with high power
PTO system - see appendices) or damage to the hydraulic system may result.
After
completing the first 50 hours running, carry out the maintenance
instructions summarised in the maintenance section of this manual.

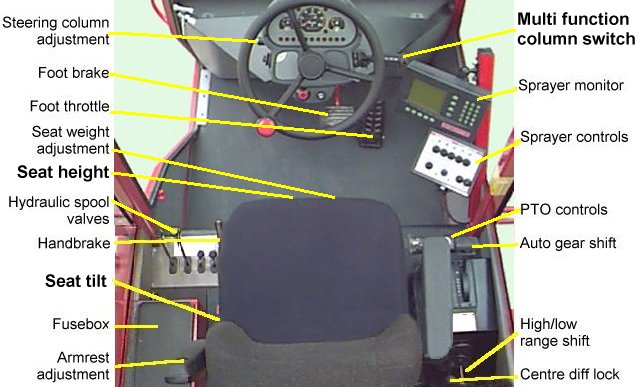

Main Driving controls
Starting engine
1. Ensure PTO is
disengaged, handbrake applied and gearshift in Park or Neutral before starting.
2. Depress the
brake and, turn the ignition switch to the centre position, wait for
5 seconds.
3. Crank the
engine by turning the key fully clockwise. Release key when engine
starts. If it does not start within 20 seconds or starts and then
stops, return the key to the off position, wait a few seconds and
then repeat the above procedure.
4. Allow engine to
idle for a few seconds to allow oil to reach the turbo-charger. Avoid
high engine revs until the engine and hydraulic system have warmed up.
After starting,
ensure that the handbrake or footbrake are firmly applied and the
accelerator pedal is not depressed while moving the gear selector
lever from 'N' or 'P', other wise the vehicle may move immediately
the selector lever is moved to one of the drive positions. This is
particularly important whilst the engine is cold, because the engine
will be idling at a faster speed than normal
The first position
on the ignition switch powers accessories only such as the Radio
