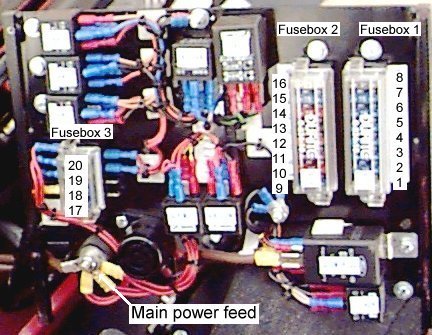

Fusebox 1
1 Intercooler fan
2 Auxiliary
controls / boutmarker
3 Cigarette /
power socket
4 Rear work lamps
/ beacon
5 Front work lamps
/ interior lamp
6 Headlights
/flash / horn
7 Air con
compressor / Hazard warning
8 Four wheel steering
Fusebox 2
9 Ventilation fan
/ wiper park / radio
10 Wipers / screen wash
11 PTO on/off /
PTO speed / brake warning lamp
12 RDS Delta / ICM
/ 4WS activation
13 Indicators
14 Engine fuel
solenoid / Brake lights
15 Spray controls
(motorised valves only)
16 Ignition switch feed
Fusebox 3
17 Spare
18 Spare
19 Cooling fan 1
20 Cooling fan 2 |
25A
15A
15A
15A
15A
15A
15A
2A
15A
10A
3A
5A
7.5A
10A
15A
25A
10A
10A
25A
25A |
