Operating - Hyraulic PTO
Hydraulic PTO system.
For information on the optional high power PTO system (Airtec) or non standard hydraulic systems please see appendices.
Safety
1/ Ensure PTO is disengaged before starting engine.
2/ The engine MUST be switched off before connecting the PTO or making any adjustments. - NB The hydraulic PTO drive shaft will normaly creep round very slowly even when it is switched off.
Operation

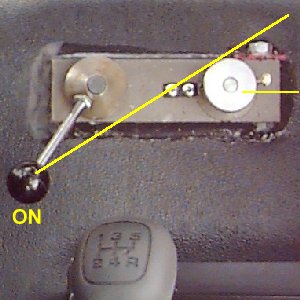

The PTO is hydraulically driven, is fully independent and may therefore be engaged at any time providing the engine revs are not too high. The PTO controls are situated to the right of the seat and in front of the gear lever. To engage the PTO move the control lever to the left(as shown).
|
|
PTO on /off
|
